Product Catalog > Pond Pumps > Aeration Pumps  > 1/4 HP Rocking Piston Air Systems Basic Kit

Options
Now Only: Price Varies   Qty:

PA34

1/4 HP Rocking Piston Air Systems Basic Kit - For ponds up to 1 acre - Easy Pro

1/4 HP Rocking Piston Air Systems Basic Kit

1/4 hp Rocking Piston Systems -  BEST SELLER!

• Our most popular systems!

• Two year warranty on compressor, five year warranty on tubing, diffusers and cabinets

• Coverage area based on diffusers in 5' to 16' of water, actual area will vary according to diffuser operating depth

• Typical operation cost of $0.37 per 24 hours (at .09’ per kwh, actual cost will vary)

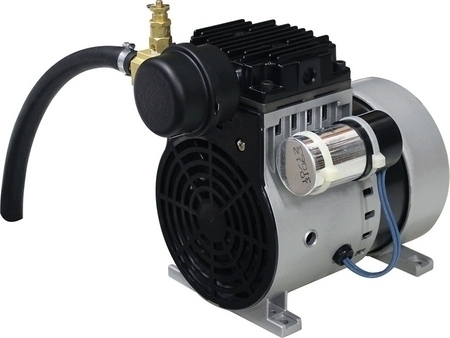

Basic Systems - 1/4 HP compressor, 2.5 cfm, 2.3 amps, aerates up to 50' deep

• PA34 Basic kit includes compressor, air outlet with pressure relief valve, 100' 3/8" poly tubing, EPMD1 air diffuser, fittings and clamps

• PA34W Basic kit - Quick Sink Tubing includes all items as PA34 replacing the poly tubing with Quick Sink tubing

• PA34-2 Includes two EPMD1 air diffusers and valve assembly — kit is priced without any tubing. Buy poly or Quick Sink tubing as needed. PA34-2 is ideal for aerating long, narrow ponds or two small ponds with one compressor.


Part#

Diffusers
Tubing TypeTubing LengthStocking CodeShip Weight
PA34(1)EPMD1Poly100'347242731 lbs

PA34W

(1)EPMD1
3/8" Quick Sink
100'

9524922

48 lbs
PA34-2(2)EPMD1None-257809616 + 14 lbs

All kits 115v, Add "2" behind Part# for 230v Motor

Options:

RPA62  2 or 3 valve Rocking Piston Remote Valve Price Adder - set up for 5/8" poly line

UF3 - 3" Single Screen Centrifugal Pump Intake Filter

View the PDF for complete operating instructions.

View PDF Info Sheet

Instructions for Installing a Repair Kit


Click on any image for a larger view

3
3" Single Screen Centrifugal Pump Intake Fltr UF3

1/4 HP Rocking Piston Air Systems Basic Kit
