Rotary Vane Aeration PA100 Sentinel Deluxe Systems 1HP Gast - 6 Acres
FREE SHIPPING!

Write a Review

Starts at: $2,522.78

Shipping: Free

Brand: EasyPro

SKU:PA100ADLD

Rotary Vane Deluxe Systems - 1 Year Warranty on Compressor
5 Year Warranty on Tubing, Diffusers and Cabinet

Aerate up to 6 Acres

1 1/2 acres at 5-8' deep
3 acres at 8' -12' deep
6 acres at 12'-16' deep
  • 18' maximum operating depth
  • Dual voltage motors ship 115v unless specified 230v

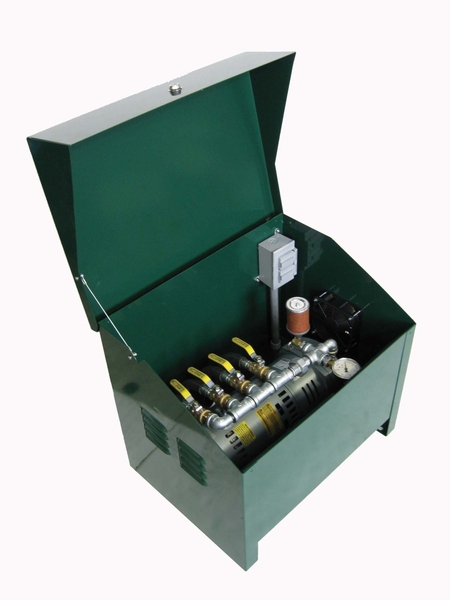

  • Each package includes our deluxe locking cabinet complete with air compressor already installed, a cooling fan already installed and a electrical box/outlet already mounted and ready for your incoming power line
  • Every compressor has a valved outlet assembly, a pressure relief valve and a pressure gauge installed, simply set cabinet in desired location, install the air diffusers and connect the tubing!

PA100D Sentinel Deluxe Aeration System – Complete PA100W system with cabinet

PA100D

Complete Sentinel Deluxe Aeration System for ponds up to six acres depending on shape and depth of pond. 1 hp Rotary Vane RV100 compressor, 13.5 cfm, 14 amps, aerates up to 18′ deep. PA100D kit includes compressor, six valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes six QS2 Quick Sink air diffusers, 800′ of 1/2″ Quick Sink tubing and fittings for connections.

PA100A Rotary Vane Pond Aeration System -1 HP Kit with NO Tubing

PA100A

Aeration system for ponds up to six acres depending on shape and depth of pond. 1 hp Rotary Vane RV100 compressor, 13.5 cfm, 14 amps, aerates up to 18′ deep. The PA100A kit also includes six QS2 Quick Sink air diffusers, six valved outlet assembly with pressure relief valve, fittings and clamps. Kit does not include tubing, making it an ideal solution where custom tubing lengths can be purchased as needed. Connections are set up for 1/2″ ID tubing.

PA100W Rotary Vane Pond Aeration System -1 HP Kit with Quick Sink Tubing

PA100W

Complete aeration system for ponds up to six acres depending on shape and depth of pond. 1 hp Rotary Vane RV100 compressor, 13.5 cfm, 14 amps, aerates up to 18′ deep. The PA100W kit also includes six QS2 Quick Sink air diffusers, six valved outlet assembly with pressure relief valve, 800′ of 1/2″ Quick Sink tubing, fittings and clamps.

PA100AD Sentinel Deluxe Aeration System – Complete PA100A system with cabinet

PA100AD

Sentinel Deluxe Aeration System for ponds up to six acres depending on shape and depth of pond. 1 hp Rotary Vane RV100 compressor, 13.5 cfm, 14 amps, aerates up to 18′ deep. PA100D kit includes compressor, six valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes six QS2 Quick Sink air diffusers and fittings for connections. Kit does not include tubing, making it an ideal solution where custom tubing lengths can be purchased as needed. Connections are set up for 1/2″ ID tubing.

PA100D Sentinel Deluxe Aeration System – Complete PA100W system with cabinet

PA100D

Complete Sentinel Deluxe Aeration System for ponds up to six acres depending on shape and depth of pond. 1 hp Rotary Vane RV100 compressor, 13.5 cfm, 14 amps, aerates up to 18′ deep. PA100D kit includes compressor, six valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes six QS2 Quick Sink air diffusers, 800′ of 1/2″ Quick Sink tubing and fittings for connections.

PA100DLD Sentinel Deluxe Aeration System – 1 HP Kit with Quick Sink Tubing

PA100DLD

Sentinel Deluxe Aeration System for ponds up to six acres depending on shape and depth of pond. 1 hp Rotary Vane RV100 compressor, 13.5 cfm, 14 amps, aerates up to 18′ deep. PA100DLD kit includes compressor, six valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes 800′ of 1/2″ Quick Sink tubing and fittings for connections. Kit does not include diffusers making it an ideal solution to select diffusers that best fit the application.

PA100ADLD Sentinel Deluxe Aeration System – 1 HP Kit with NO Tubing

PA100ADLD

Sentinel Deluxe Aeration System for ponds up to six acres depending on shape and depth of pond. 1 hp Rotary Vane RV100 compressor, 13.5 cfm, 14 amps, aerates up to 18′ deep. PA100ADLD kit includes compressor, six valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit does not include tubing or diffusers making it an ideal solution where custom tubing lengths and choice of diffusers can be purchased as needed. Connections are set up for 1/2″ ID tubing.

Each Deluxe Kit includes

  • 1 hp Gast rotary vane compressor ww/ 1 year warranty
  • 22" ground cabinet
  • Six valve manifold with pressure relief
  • Choice of 800' of 1/2" Quick Sink Tubing or no tubing
  • Quick Sink self-weighted diffuser bases or no diffusers for custom system
  • Approx 2.2 cfm air flow per diffuser
