Aerate up to four acres. Designed for ponds up to 50' deep

• 3/4 HP Stratus SRC Gen 2 compressor with 2 year warranty
• Four valve manifold with pressure relief
• Choice of 600' of 3/8" Quick SInk Tubing or no tubing
• Easy to install QS1 and QS2 Quick Sink self-weighted diffusers.
• Approximately 1.6 cfm air flow per diffuser
• Typical operation cost of 1.10 per 24 hours at .09 per kwh

PA86W  3/4 HP Kit w/ Quick Sink Tubing

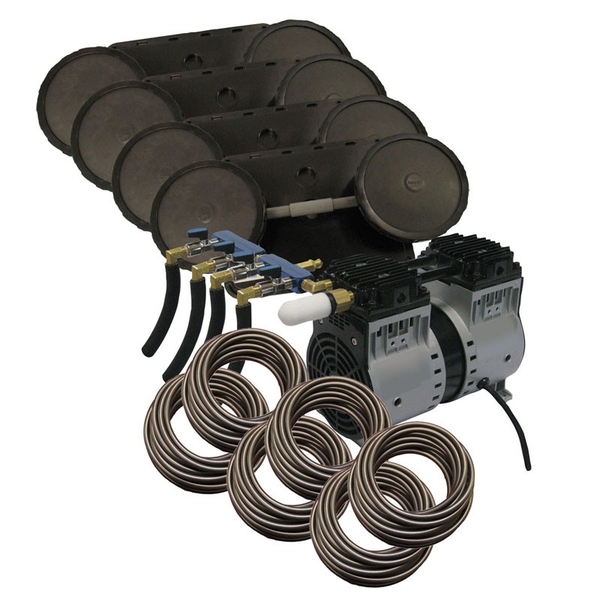

PA86W Rocking Piston Pond Aeration system – 3/4HP Kit with Quick Sink Tubing

PA86W

Complete aeration system for ponds up to four acres depending on shape and depth of pond. 3/4 hp Rocking Piston SRC75 compressor, 6.5 cfm, 4.5 amps, aerates up to 50′ deep. The PA86W kit also includes four QS2 Quick Sink air diffusers, four valved outlet assembly with pressure relief valve, 600′ of 3/8″ Quick Sink tubing, fittings and clamps.

PA86W features:

• 3/4 hp Stratus SRC75 Gen 2 compressor with two year warranty
• Four valve manifold with pressure relief
• Valved outlet with heat reducing hose and 3/8″ connections
• Four QS2 Quick Sink self weighted dual head air diffusers
• 600′ 3/8″ Quick Sink weighted tubing
• Approximately 1.6 cfm of air flow per diffuser
• Typical operation cost of $1.10 per 24 hours at .09¢ per kWh, actual cost may vary
• PA86W requires weather protection for the compressor

Aeration Kit for Ponds up to 3 acres
2 Year Warranty on Compressor
5 Year Warranty on Tubing and Diffusers

Additional Information

• Tubin:g 600 ft 3/8" Quick Sink
• Horsepower: 3/4 HP
• Voltage: 115v (add 2 behind part # for 230v)
• Amps: 4.5/2.3 amps (at 10' operating depth)
• Maximum Air Flow: 6.5 cfm
• Maximum Depth: 50'
• Weight: 223 lbs
• In Aeration Acres:Up to 4 acres

PA86A 3/4 HP 4 Valve Kit w/ NO Tubing

PA86WLD 3/4 HP 4 Valve Kit w/ Quick Sink Tubing (No Diffusers)

PA86ALD 3/4 HP 4 Valve Kit w/ No Tubing and No Diffusers

PA86D Complete PA86W system with cabinet
