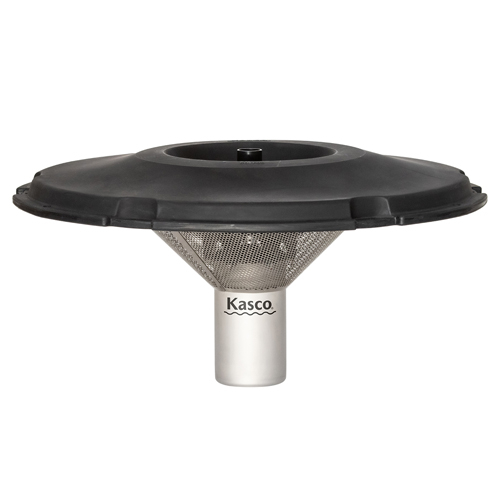

Kasco has redesigned the J Series fountains for increased performance and improved pattern definition, all while maintaining the same cost of operation as current models.
These new models feature increased water flow for crisp and larger laminar displays, no increase in power (amp) usage, and new Balsam 3-tier pattern. Installation and assembly is now easier than ever with fewer parts required, 1-piece float, twist and lock nozzles, easier maintenance and snap-on light clips for installation of optional lighting (purchased separately).
Redesigned units are available in both 60Hz and 50Hz (1-5HP) options.
Kasco J Series fountains are the perfect focal point in any pond or lake. From the 30 ft. high attention-demanding Redwood pattern to the elegant Balsam 3-tier pattern, each nozzle offers its own visual appeal. Designed with both beauty and function in mind, these fountains can improve overall water quality by increasing oxygen transfer. All J Series Fountains come with multiple nozzles included in the price and can be paired with an optional light kit.
Package Includes
- Motor unit
- Float
- Bottom screen
- Interchangeable nozzles
- Control panel with GFI protection
- Mooring lines
- Power cord
- 50Hz units include a motor unit, 15m mooring lines, multiple nozzles and power cord
Fountain Nozzle Patterns:
Balsam | Linden | Spruce | Redwood | Birch |
FEATURES AND BENEFITS
Multiple Patterns in One Unit: Custom-configure the unit to the exact project needs and your personal tastes.
Efficient / Low Power Use: Highest efficiency design for low power consumption versus competing units. Reduces operating costs over the entire life of the unit. 13.4 running amps on a 240V single phase circuit or 10.3 amps on a 208/240V, 3 phase circuit for low operating costs.
Clog Resistant: Unique water-deflecting nozzle design gives you the most clog-resistant model on the market. Successful shallow water operation in as little as 24"
Rugged Motor: Environmentally friendly design with a hard-face internal mechanical seal and external lip seal for protection against leaks. Seals are silicone carbide for long life. Long-life top and bottom ball bearings. Flood oil lubricated for excellent heat dissipation.
Corrosion Resistant: Superior dependability in salt-water or other corrosive environments. All external metal motor, float, and hardware components are of stainless steel composition and protected by a sacrificial zinc anode.
Low Maintenance: Clean the motor housing once or twice per year and replacing the sacrificial zinc anode when visibly corroded.
Fully Tested: ETL listed to stringent UL and CSA Safety Standards .
Ships Easily: Via UPS in 4 or 5 boxes (add 1 box for lights)
Dependable: Backed by a three-year warranty
Choice of Cord Lengths: SJTOW or SOOW underwater rated power cord length options of 50', 100', 150', 200', 250', 300', or 400' (500' special order) Includes three 50' braided nylon mooring ropes.
Made in the U.S.A.
Part Number |
HP |
Min. Depth |
Amps |
Volts |
Cord Length |
---|---|---|---|---|---|
3.1JF050 |
3 |
24" |
13.4 |
240 |
50 ft. |
3.1JF100 |
3 |
24" |
13.4 |
240 |
100 ft. |
3.1JF150 |
3 |
24" |
13.4 |
240 |
150 ft. |
3.1JF200 |
3 |
24" |
13.4 |
240 |
200 ft. |
*Please contact ThePondOutlet.com for special pricing if cord length of more than 200 ft. is necessary
PondMeister Note:
For Aeration Sizing purposes, as a rough Rule-of-Thumb, Kasco uses 1 HP for every Surface Acre of water.
One Surface Area of water is 43,560 square feet.
For example, if your pond is 100' x 100' you have 10,000 square feet of Surface Area. This would require a 1/4 HP Kasco Fountain
View the PDF for complete operating instructions.
