Kasco Aerating Fountain 5.1VFX 5 HP Free Shipping
Starts at: $8,105.00
Shipping: Free
Brand: Kasco
SKU:5.1VFX100
Designed to provide optimum performance and a stunning display for large ponds, Kasco’s 5.1VFX (Single phase) expands the proven VFX line into a 5 HP model.
The classic Kasco "V" fountain pattern, 9' tall x 34' wide gives this model a beautiful eye-catching display. The larger motor and enhanced propeller design gives a pumping rate of over 800 gallons per minute, adding maximum oxygen to improve your pond or lake aeration. It will assist in improving your water quality as well as adding to the aesthetic appeal of your pond.
5HP VFX fountains now feature a 1-piece tapered float. These new floats allow for faster and easier assembly and provide an improved look on the water’s surface.
The VFX fountain line delivers superior aerating performance, coupled with a beautiful visual display. These units are efficient, easy to install and operate, and can be used in multiple applications.
Product Features
- Minimum water depth 26 in.
- Complete packages are ETL approved to UL and CSA standards
- 3 year warranty
- Fountain Display 9' high, 34' wide

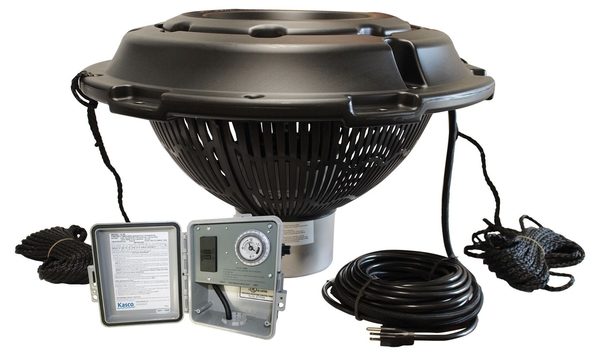

Package Includes
- Motor unit
- Float
- Bottom screen
- Control panel with GFI protection
- Power cord
- Mooring lines
FEATURES AND BENEFITS OF THE 5.1VFX
Product update 2021:
Kasco's 5 hp VFX series fountains now feature a 1 piece tapered float. This new float provides easier installation and improved appearance in the water. Their new light clip brackets also snap right onto this new float.
Dramatic “V” Pattern: 9' tall x 34' wide
Efficient / Low Power Use: Highest efficiency design for low power consumption versus competing units. Reduces operating costs over the entire life of the unit. 20 running amps on a 240V single phase circuit or 16 amps on 208/240V 3 phase circuit for low operating costs.
Clog Resistant: Unique water-deflecting nozzle design gives you the most clog-resistant model on the market. Successful shallow water operation in as little as 26"
Rugged Motor: Environmentally friendly design with a hard-face internal mechanical seal and external lip seal for protection against leaks. Seals are silicone carbide for long life. Long-life top and bottom ball bearings. Flood oil lubricated for excellent heat dissipation.
Corrosion Resistant: Superior dependability in salt-water or other corrosive environments. All external metal motor, float, and hardware components are of stainless steel composition and protected by a sacrificial zinc anode.
Low Maintenance: Clean the motor housing once or twice per year and replacing the sacrificial zinc anode when visibly corroded.
Fully Tested: ETL listed to stringent UL and CSA Safety Standards .
Ships Easily: Via UPS in 3 or 4 boxes depending upon cord length selected (add 1 box for lights)
Dependable: Backed by a three-year warranty
Choice of Cord Lengths: SJTOW or SOOW underwater rated power cord length options of 100', 150', 200', 250', 300', or 400' (500' special order) Includes three 50' braided nylon mooring ropes.
Made in the U.S.A.
Part Number |
HP |
Min. Depth |
Amps |
Volts |
Cord Length |
---|---|---|---|---|---|
5.1VFX100 |
5 |
26" |
20 |
240 |
100 ft. |
5.1VFX150 |
5 |
26" |
20 |
240 |
150 ft. |
5.1VFX200 |
5 |
26" |
20 |
240 |
200 ft. |
*Please contact ThePondOutlet.com for special pricing if cord length of more than 200 ft. is necessary
PondMeister Note:
For Aeration Sizing purposes, as a rough Rule-of-Thumb, Kasco uses 1 HP for every Surface Acre of water.
One Surface Area of water is 43,560 square feet.
For example, if your pond is 100' x 100' you have 10,000 square feet of Surface Area. This would require a 1/4 HP Kasco Fountain
View the PDF for complete operating instructions.
