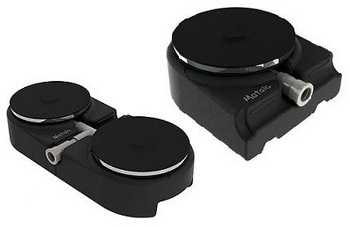

Air Disc Diffusers with Base
Air Diffusers

Write a Review

Starts at: $75.00

Brand: Matala

SKU:MDB11

Need accessories for this item?

View Accessories

Product Accessories

Part #: MD-225

$35.00

Matala offers an air diffuser assembly with hollow base that can be filled with sand or gravel. This eliminates the need for bricks and straps to get the diffuser to sink. The base is heavy duty rugged plastic with soft edges. Fill the base with small gravel and sand and purge of all air bubbles. The base comes with a friendly multi-barb that will allow connection to various sizes of air hose including 3/8", 1/2", 5/8" and 1".These are available with 9" or 12" rubber membrane disc diffusers as a single disc, double disc or quad disc assembly.

Features and Benefits:

  • The air diffuser platform mounts diffuser firmly to bottom of pond up out of any mud.
  • Hollow base is filled with sand or gravel and water to weigh it down and keep shipping cost low.
  • Highest quality EPDM rubber membrane on the market. The membrane will maintain a self-cleaning and flexible nature for 10 years plus! Designed for industrial waste water applications.
  • Disc membrane is the lowest back pressure membrane diffuser on the market. Adds only 4" of back pressure to pump.
  • Koi fish safe!

Parts sold separately as well as complete in kit.

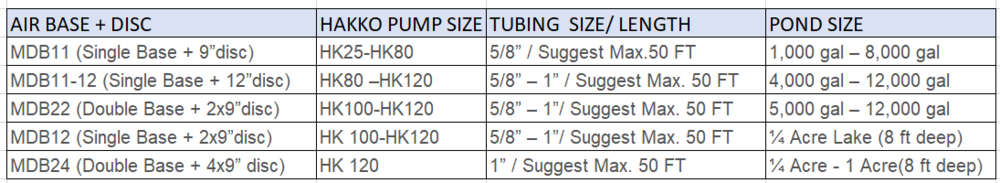

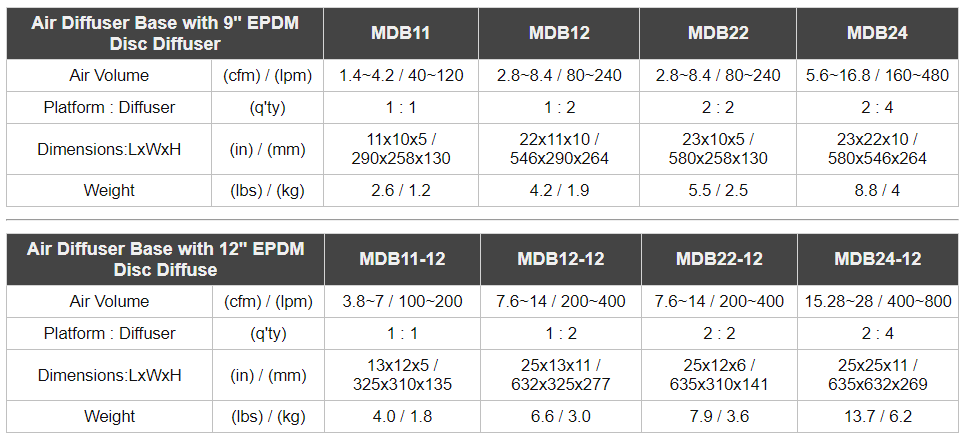

AIRFLOW RECOMMENDATIONS

Single 9" head (MDB11) handles airflow 0.9 - 4.2 cfm / 25 - 120 lpm. Recommended for 25 lpm - 80 lpm air pumps.

Double 9" head (MDB12 or MDB22) handles airflow 2.1 - 8.4 cfm / 60 - 240 lpm. Recommended for 100 lpm - 200 lpm air pumps. This configuration will give a slightly smaller bubble size for a more gentle roll at the surface of pond.

Quadruple 9" head (MDB24) handles airflow 4.2 -16.8 cfm / 120 - 480 lpm. Recommended for 150 lpm to 250 lpm air pumps. This configuration will give a slightly smaller bubble size for a more gentle roll at the surface of pond.

Single 12" head (MDB11+12) handles airflow 2.8 - 7.0 cfm / 80 - 200 lpm. Recommended for 80 lpm to 150 lpm air pumps.

Double 12" head (MDB22+12 "Special Order") handles airflow 5.6 - 14.0 cfm / 160 - 400 lpm. Recommended for 200 lpm to 350 lpm air pumps. This configuration will give a slightly smaller bubble size for a more gentle roll at the surface of pond.

Customer Question:

How do I fill the Base with sand or gravel?

Matala Answer:

You need to unscrew the diffuser. Unplug the black plug covering the hole.


Customer Question:

Shouldn't this come with a check valve in the hose fitting?

I didn't receive one...

Matala Answer:

Sorry, there is a check valve built into the disc itself. It isn’t accessible, so some customers don’t know it is there.We don’t have numbers on how effective the built in check valve is, but we haven’t had any issues with customers burning up pumps due to water in the tubing.

View the PDF for complete operating instructions.

View PDF Info Sheet
