Supreme Aqua-Mag Mag-Drive Pumps by PondMaster - FIVE YEAR WARRANTY! In-Line or Submersible!

Pond Pumps | Pondmaster Mag-Drive Pumps

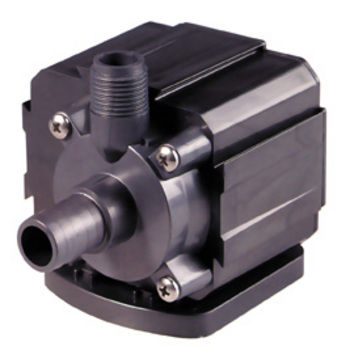

Supreme Aqua-Mag Mag-Drive Pumps by PondMaster
- FIVE YEAR WARRANTY! In-Line or Submersible!

Write a Review

Starts at: $59.99

Brand: PondMaster

SKU: SUP02512

Need accessories for this item?

View Accessories

Product Accessories

Part #: SUP11655

$8.12

Part #: SUP12800

$25.13

Part #: SUP12099

$9.86

Part #: SUP12605

$4.01

FIVE YEAR Warranty! (Impellers and Volutes have one year Warranty)

Mag-Drive 250-700 Pumps Mag-Drive 950-1800 Pumps Mag-Drive 2400 Pumps
SUP02512: 250-gph w/10' cord

SUP02522: 250-gph w/18' cord

  • 21 watts;
  • 0.3 amps.
  • 205-gph @ 3';
  • max lift 7'.Max
  • . Watts/Amps 24/0.4
  • Inlet 1/2" FPT
  • Outlet 1/2" MPT
  • Dimensions (L x W x H) 5.0" x 3.8" x 4.2"

SUP02513: 350-gph w/10' cord
SUP02523: 350-gph w/18' cord

  • 37 watts;
  • 0.6 amps.
  • 335-gph @ 3';
  • max lift 10.5'Max
  • Watts/Amps 35/0.6
  • Inlet 1/2" FPT
  • Outlet 1/2" MPT
  • Dimensions (L x W x H) 5.0" x 3.8" x 4.2"
    .

SUP02515: 500-gph w/10' cord
SUP02525: 500-gph w/18' cord

  • 49 watts;
  • 0.8 amps.
  • 425-gph @ 3';
  • max lift 10.5'.
  • Max. Watts/Amps 45/0.9
  • Inlet 1/2" FPT
  • Outlet 1/2" MPT
  • Dimensions (L x W x H) 5.0" x 3.8" x 4.2"

SUP02517: 700-gph w/10' cord
SUP02527: 700-gph w/18' cord

  • 60 watts;
  • 1.3 amps.
  • 460-gph @ 3';
  • max lift 11.5'
  • Max. Watts/Amps 70/1.6
  • Inlet 1/2" FPT
  • Outlet 1/2" MPT
  • Dimensions (L x W x H) 5.0" x 3.8" x 4.2"
SUP02710 - 950 w/10' cord

SUP02720 - 950 w/18' cord

  • 950 GPH Maximum Flow with a 12'10" Shut-Off
  • Ceramic Shaft
  • Pre-Filter Included
  • Operates Submerged or In-line
  • PM 9.5 - 18' Grounded Power Cord
  • 5 YEAR LIMITED WARRANTY
  • Dimensions (L x W x H) in inches: 5.5 x 3.4 x 5
  • Amps 1.33
  • Watts: 93

SUP02712 - 1200 w/10' cord
SUP02722 - 1200 w/18' cord

  • 1200 GPH Maximum Flow with a 13'6" Shut-Off
  • Ceramic Shaft
  • Pre-Filter Included
  • Operates Submerged or In-line
  • PM 12 - 18' Grounded Power Cord
  • 5 YEAR LIMITED WARRANTY
  • Dimensions (L x W x H) in inches: 6.4 x 4.5 x 4.6
  • Amps 1.5
  • Watts: 110

SUP02718 - 1800 w/10' cord
SUP02728 - 1800 w/18' cord

  • 1800 GPH Maximum Flow with a 15'6" Shut-Off
  • Ceramic Shaft
  • Pre-Filter Included
  • Operates Submerged or In-line
  • PM 18 - 18' Grounded Power Cord
  • 5 YEAR LIMITED WARRANTY
  • Dimensions (L x W x H) in inches: 6.4 x 4.5 x 4.6
  • Amps 1.5
  • Watts: 145
SUP02740 -2400-gph w/10' cord

SUP02750 -2400-gph w/18' cord

  • 2400 GPH Maximum Flow with a 18' Shut-Off
  • Energy Efficient
  • Ceramic Shaft
  • Filled with Epoxy, Not Oil
  • Pre-Filter Included
  • 1" Threaded Inlet/Outlet
  • Operates Submerged or In-line
  • PM 24 - 10/18' Grounded Power Cord
  • 5 YEAR LIMITED WARRANTY
  • Cord Length: 18'
  • Dimensions (L x W x H) in inches: 7.5 x 4.0 x 6.0
  • Amps/Watts: 3.0/265

INLINE PIPING

Centrifugal pumps cannot pull water from a lower level. In order to start, pump must be below water level and filled with water. Unless the air can escape from the outlet, the pump will not start. Do not use glues or solvents to connect the pumps threaded fittings. Use Teflon pipe tape. The pump cover is not designed to support long pipe runs or to correct pipe misalignment.

  • All have prefilters.
  • 250 to 700 gph pumps have 1/2" FNPT intake and 1/2" MNPT discharge.
  • 950 to 1800 gph pumps have 3/4" FNPT intake and 3/4" MNPT discharge.
  • 2400 gph pumps have 1" FNPT intake and 1" MNPT discharge.

* Pumps with 10' cord are packaged in "Supreme" retail boxes.
Pumps with 18' cord are packaged in "Pondmaster" retail boxes.

Impeller Assemblies:

SUP12650 (65 gph) Impeller

SUP11655 (80 gph) Impeller/Magnet

SUP12655 (140 gph) Impeller/Magnet

SUP12955 (190 gph) Impeller/Magnet

SUP12555 (250 gph) Impeller/Magnet

SUP16555 - Fractionating Impeller Assembly for Model 250

SUP12575 (350/500 gph) Impeller/Magnet

SUP16575 - Fractionating Impeller Assembly for Models 350/500

SUP12585 (700 gph) Impeller/Magnet

SUP16585 - Fractionating Impeller Assembly for Model 700

SUP12746 (950 ) Impeller

SUP16745 - Fractionating Impeller Assembly for Model 950

SUP12756 (1200 gph) Impeller

SUP16755 - Fractionating Impeller Assembly for Model 1200

SUP12776 (1800 gph) Impeller

SUP16775 - Fractionating Impeller Assembly for Model 1800

SUP12780 (2400 gph) Impeller/Magnet

SUP12790 (3600 gph) Impeller/Magnet


Volutes / Pump Covers :

SUP12635 (80/140 gph)

SUP12640 (190 gph flow control)

SUP12645 (190 gph thread intake)

SUP12535 (250/350 thread intake)

SUP12536 (250/350 barb intake) 3/4"

SUP12545 (500/700 thread intake)

SUP12546 (500/700 barb intake) 3/4"

SUP12733 (950 gph)

SUP12741 (1200/1800 gph)

SUP12783 (2400/3600 gph)


Replacement Pre-Filters

SUP12605 (80/140/190 gph) 3 pk

SUP12505 (250-700 gph) small

SUP12285 (250-700 gph) large

SUP12730 (950-1800 gph foam)

SUP12785 (950-1800 gph plactic)

  Other Parts:

SUP16505 Venturi Assembly with Tubing and Muffler for 250-700

SUP16705 Venturi Assembly with Tubing and Muffler for 950-1800

View the PDF for complete operating instructions.

View PDF Info Sheet
