Atlantic WaterGardens Fountain Basins - 2 Round- One Square Special Order / Non Stock - 24" is Square

Atlantic WaterGardens  Fountain Basins - 2 Round- One Square | Basins

Atlantic WaterGardens Fountain Basins - 2 Round- One Square
Special Order / Non Stock - 24" is Square

Write a Review

Starts at: $179.99

Brand: Atlantic Water Gardens

SKU:AWG033

MPN: 74958

Need accessories for this item?

View Accessories

Product Accessories

Part #: AWGZFBKIT1

$71.99

Fountain Basins incorporate the features, strength, and ease of installation demanded by today's professional installers.

Atlantic's innovative design includes a flat, supported top deck with recessed plumbing channels and pocket for the New Triton 3-way manifold.

Whether installing a bubbling urn, rock columns or a disappearing fountain, the versatility of the Fountain Basin makes them the right product for every job.

The NEW Oasis Series fountain basin offers the strength and features that set it apart from the rest. Recessed plumbing channels, molded support cone and heavy wall thickness normally found in contractor grade equipment make this absolutely the best choice for retail applications.

When they were introduced, Atlantic Fountain Basins were already the strongest and best-designed on the marketplace, featuring deep plumbing channels on the top of the basin, easy access pump chambers and external flow adjustment for convenient installation and maintenance. Now they’re even better, with new internal buttressing cones for greater rigidity. Count on Atlantic to keep on performing!

Model: FB2400/ AWG033

  • Dimensions: 24" x 24" x 10"
  • Max Pump Flow: 750 GPH
  • Plumbing Size: Up to 3/4"
  • Capacity: 20 Gallons - Up to 200 pounds


Model: FB3200 / AWGZFB32

  • Dimensions: 32”W x 13”H
  • Max Pump Flow: 2000 gph
  • Plumbing Size: (3) Ύ” or (1) 1” hose
  • Capacity: 32 Gallons - up to 400 pounds
  • Application: Pond-free Fountain

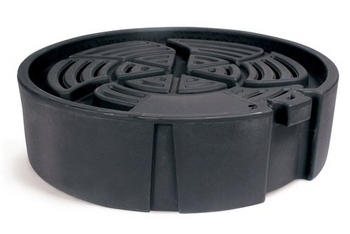

Model: FB4600 / AWGZFB46

  • Dimensions: 46”W x 13”H
  • Max Pump Flow: 4000 gph
  • Plumbing Size: (3) Ύ” or (1) 1½” hose
  • Capacity: 67 Gallons - 1200 lbs
  • Application: Pond-free Fountain

Fountain Basin Features

    1 One-piece construction provides exceptional strength

    2 Built in channels simplify installation; allowing the plumbing to be run on top of the basin.

    3 (7) molded cones support the top panel

    4 Recessed pocket accepts the Triton 3 Way Manifold. Adjusting the water flow to multiple pieces has never been easier.

    5 Recessed pockets allow 1-1/2" conduit sleeves to be installed within the radius of the basin; allows access to pump cords and low voltage wiring when surrounding the unit with pavers.

    6 Flat panel for the installation of an AF1000 Auto-fill.


    The NEW Oasis Series fountain basin offers the strength and features that set it apart from the rest. Recessed plumbing channels, molded support cone and heavy wall thickness normally found in contractor grade equipment make this absolutely the best choice for retail applications.

    When they were introduced, Atlantic Fountain Basins were already the strongest and best-designed on the marketplace, featuring deep plumbing channels on the top of the basin, easy access pump chambers and external flow adjustment for convenient installation and maintenance. Now they’re even better, with new internal buttressing cones for greater rigidity. Count on Atlantic to keep on performing!

    Manufacturer Hint:

    The FB3200 has a load bearing weight of 500 lbs and the FB4600 has a load bearing weight of 1200 lbs. The important thing to keep in mind is, the above weights were tested using evenly distributed weight. If the basalt column has a narrow base with a lot of focused pressure, two things can be done: flip the basin and fill the hollow cones with cement, or use a flat sand stone to help disperse the weight.

    Available in:

     Catalog ID

    Part Number

    Description

    Gallon Capacity

    Dimensions

      ATLZFB24

     FB2400

     Small

     20

     24" x 24" x 10"

     ATLZFB32

    FB3200

    Medium

    32

    32" x 13"

      ATLZFB46

    FB4600

    Large

    67

    46" x 13"


    AWGZFBKIT1 - Single Fountain Basin Kit

    Fountain Basin Kit , FBKIT1

    Part No. FBKIT1
    • TW2 pump discharge fittings
    • Single ball valve
    • 6’ of Ύ” diameter kink-free hose
    • (1) standpipe sealant
    • Ύ” insert x Ύ” socket fitting
    • 1½” cord stopper for conduit sleeve


    AWGZFBKIT3 - Multiple Fountain Basin Kit

    Fountain Basin Kit , FBKIT3

    Part No. FBKIT3
    • TW2 pump discharge fittings
    • Triton 3-Way Diverter
    • 20’ of Ύ” diameter kink-free hose
    • (3) standpipe sealants
    • (3) Ύ” insert x Ύ” socket fittings
    • (2) 1½” cord stoppers for conduit sleeves

    Fountain Basin Kit , FBKIT3

    Part No. FBKIT3
    • TW2 pump discharge fittings
    • Triton 3-Way Diverter
    • 20’ of Ύ” diameter kink-free hose
    • (3) standpipe sealants
    • (3) Ύ” insert x Ύ” socket fittings
    • (2) 1½” cord stoppers for conduit sleeves

    Truck-Ship only

    View the PDF for complete operating instructions.

    View PDF Info Sheet
