Aquasurge Pumps 2000, 3000, 4000, 5000 - Free Shipping on Pumps!

Aquasurge Pumps | Aquascape Pond Pumps

Aquasurge Pumps 2000, 3000, 4000, 5000
- Free Shipping on Pumps!

Write a Review

Starts at: $279.98

Shipping: Free

Brand: Aquascape

SKU: 91017

Need accessories for this item?

View Accessories

Product Accessories

Part #: 91064

$16.78

Part #: 91066

$12.78

Part #: 29705

$13.99

FREE SHIPPING ON ALL AQUASURGE PUMPS!

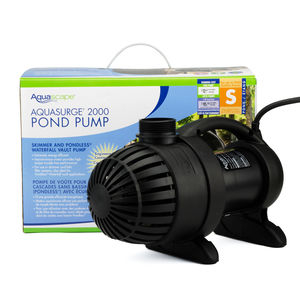

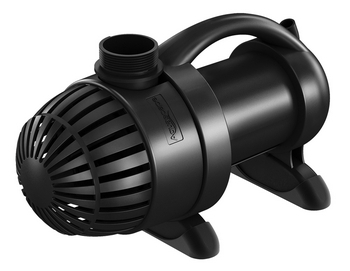

The Aquascape AquaSurge 2000,3000,4000, 5000 asynchronous pumps are ideal for use in Ponds, Pondless Waterfalls, and other water feature applications, providing high-torque, trouble free performance.

Designed for use in skimmer and waterfall-filter systems, the AquaSurge pumps are made for continuous use in either vertical or horizontal orientation.

Asynchronous motor technology makes this pump extremely energy-efficient, saving you hundreds of dollars over traditional water pumps and the oil-free design prevents pond contamination.

A variety of fittings is included for simple installation, including a rotational ball output which allows the discharge position to be easily adjusted.

The AquaSurge 2000-5000 Pumps will not corrode or rust and the rubber feet will prevent noise and vibration while in use.

Need a new Aquascape pump?

Aquasurge is the perfect replacement pump for the Aquascape Pro 3000 or Aquascape Pro 4500.

Top 5 Reasons for replacing your Aquascape Pro 3000 or 4500 with a new AquaSurge Pump:

1. Price: about $150 - $200 cheaper for comparable Flow Rates

2. Energy Efficiency: AquaSurge 3000 gph pump takes only 165 Watts vs. 280 watts for the Aquascape Pro 3000. The AquaSurge 5000 gph pump takes 360 Watts vs 625 Watts for the Aquascape Pro 4500.

3. Warranty: The AquaSurge is one of the few pumps in the industry to have a THREE YEAR WARRANTY. The Aquascape Pro line has a 2 year warranty.

4. More Bang for the Buck: The Aquasurge 5000 gets out 5000 gph at 5' vs only 4500 gph for the Aquascape Pro 4500.

5. Winter Maintenance: The old Aquascape Pro pumps needed to stay submerged in a bucket of water if you took the pump out in the winter in order to keep the seals wet. Since the Aquasurge pumps do not have seals or oil, no need to keep in water over the winter.

Aquasurge Generation Two Pump Performance Chart

Model

Item Number

Average Pond Size Recommendation (Gallons)

Maximum Flow Rate

(GPH)

GPH @ 5 ft.

Maximum Head Height

(Feet)

Watts

Monthly

Operating

Cost

Amps

AquaSurge 2000

9101720002193185012.47160$6.56.78

AquaSurge 3000

9101830003196270014.76165$12.031.4

AquaSurge 4000

9101940003947370018.55215$14.121.82

AquaSurge 5000

9102050005284500023.62360$26.263


3 YEAR WARRANTY

  • Extremely energy-efficient, saving hundreds of dollars over traditional water pumps
  • Asynchronous motor technology provides high torque, trouble-free performance at higher head heights
  • Oil-free design prevents pond contamination
  • Designed for use in skimmer and falls filter systems
  • Provides years of trouble-free operation
  • Made for continuous use
  • Will not corrode or rust
  • Rubber feet prevent noise and vibration
  • Can be used vertically or horizontally
  • 1.5" Female intakeif used without cage

Asynchronous Motor Pump

Cord Length: 20 ft. Discharge Hose Diameter: 1.5" male thread with the following

barb fitting adapters included: 3/4", 1", 1.25", 2"

Aquasurge Generation Two Pump Performance Chart

<

Model

Item Number

Average Pond Size Recommendation (Gallons)

Maximum Flow Rate

(GPH)

GPH @ 5 ft.

Maximum Head Height

(Feet)

Watts

Monthly

Operating

Cost

Amps

AquaSurge 2000

91017

2000

2193

1850

12.47

160

$6.56

.78

AquaSurge 3000

91018

3000

3196

2700

14.76

165

$12.03

1.4

AquaSurge 4000

91019

4000

3947

3700

18.55

215

$14.12

1.82

AquaSurge 5000

91020

5000

5284

5000

23.62

360

$26.26

3

Below is the Aquascape Pro Pump Performance Chart for comparison:

Aquascape Pro Pump Performance

Model

Discharge

Watts

Monthly

Operating

Cost

Max Head Height

5'

10'

15'

20'

25'

30'

35'

40'

1500

2" Female

205

$14.96

18'

1650

1150

400

3000

2" Female

280

$20.43

20'

2900

2000

1200

4500

2" Female

625

$45.60

33'

4500

4000

3300

2700

2000

1000

7500

2" Female

1200

$83.90

42'

6700

6100

5300

4900

4000

3200

2200

1100

10000

3" Female

1240

$90.47

28'

10600

8100

6900

4900

2300

Aquasurge Pump 2000 and 3000 Replacement Parts

91063 - Intake Screen Kit 2000/3000 GPH (#1 in the Diagram)

91065 - Discharge Fitting Kit 2000/3000/4000/5000 GPH (#3 in Diagram)

91066 - Water Chamber Cover and O-Ring Kit 2000/3000 GPH (#4 in the Diagram)

91068 - Pump Handle and Feet Kit 2000/3000 GPH (#13 and #14 in Diagram)

91070 - Replacement Impeller Kit 2000 GPH (#8 In Diagram)

91071 - Replacement Impeller Kit 3000 GPH (#8 In Diagram)

Aquasurge Pump 4000 and 5000 Replacement Parts

91064 - Intake Screen Kit 4000/5000 GPH (#1 in Diagram)

91065 - Discharge Fitting Kit 2000/3000/4000/5000 GPH (#3 In the Diagram)

91067 - Water Chamber Cover and O - Ring Kit 4000/5000 GPH (#4 In Diagram)

91069 - Pump Handle and Feet Kit 4000/5000 GPH (#13 and #14 in Diagram)

91072 - Replacement Impeller Kit 4000 GPH (#8 in Diagram)

91073 - Replacement Impeller Kit 5000 GPH (#8 in Diagram)

PondMeister Note: When Generation Two Aquasurge was first announced, the Aquasurge 2000 was supposed to be 90 watts. Unfortunately the pump was a bit underpowered and Aquascape re-engineered the pump and now produces 1850 gph at 5" with 160 watts of power

#91065 - Replacement Discharge Fitting Kit

Customer Question:

You are not going to believe this but when I plug the pump in out of the water, it makes a loud screeching noise. If necessary I can call you and let you hear it. Please advise next step.

Aquascape Tech Answer:

If you turn the Aquasurge on out of the water it is bare metal on bare metal. It is a floating rotor and impeller designed to be run fully submerged. It would be like running your car with no oil or coolant. Depending on how long he ran it for he could have permanently damaged it. This could Void the warranty.

You should NEVER dry test the Aquasurge pump. Place it in a trash can full of water if you want to test it. Bare metal on metal = heat build up and can melt the interior of the pump. The water lubricates the spinning rotor and also cools the pump.


Customer Question:

Does cutting and splicing the cord invalidate the Warranty?

Aquascape Tech Answer:

Yes

PondMeister Note: For one of my Aquasurge 5000's I cut my cord and spliced it to a longer extension cord in 2008 and it is still cranking it out running 24/7 - 365!

View the PDF for complete operating instructions.

View PDF Info Sheet

Note: You will need to order the AquaSurge Conversion Kit #29705 when converting Your Aquascape Pro (SFA) Pump 1500, 3000 or 4500 to AquaSurge

Use the AquaSurge Conversion Kit (Part#29705) to connect the 1.5" Female Threaded Outlet to either 2" or 1 1/2" Check Valve Assemblies. TheKit contains the parts necessary to convert any AquaScape Pro pump to the AquaSurge Pump using your existing Check Valve Assembly and Aquascape Skimmer.

The kit includes two parts - one you will use and the other you will not need:

1 1/2" Male Thread x 2" Slip adapter for Classic Series Skimmers and Check Valves. Cut through the2" pipe and cut off the 2" Male adapter between the Check Valve and the pump. Screw the 1.5" x 1.5" Female Adapter that comes with the pump on to the 1.5" Male Thread Outlet on the pump. Glue the 2" Slip x 1.5" Male Thread (#99144) that comes in the Conversion Kit (#29705) on to the end of the pipe you just sawed off and screw the 1.5" Male Thread onto the 1.5" Female thread.

- OR - 2" Aquascape Check Valve Adapter for Signature Series Skimmers and Check Valves. Remove the Flanged part below the Check Valve with the 2" male Thread that screws into the pump and discard. Use part #29475 which comes in the Conversion Kit #29705. Insert the Flanged end into the bottom of the Check Valve Assembly and screw the other end - 1.5" Female onto the 1.5" Male stem of the pump.

Aquasurge Pump Maintenance and Troubleshooting Tips from Dave Kelly - Aquascape Tech Guy - See Below

Reviews

Image 5.0 stars out of 5
Aquasurge Conversion
Richard,
I want to let you know that "us gals" (my neighbor lady and myself) were able to easily install the Aquascape 5000 pump without any issues today. I want to sincerely thank you for the awesome service, providing your knowledge, and in validating that we should be able to install it with the video you provided. I'm happy to say that my pondless water feature is back up-and-running and I owe it to you. Thank you so much....truly!
Reviewed Sat, Aug 25 2012 10:16 pm by
Image 5.0 stars out of 5
Pond pump replacement
Richard, your friends at Smith Turf wanted to tell you hey from NC. I followed your instructions, and just like the ‘gals’ comments on your website, it was incredibly easy to do once I had the conversion parts and watched the video. Man, you are terrific!!

I appreciate you taking the time to walk me thru it and guiding to the right parts and anticipating what the problems were to avoid.

Thanks again, you are a good man to know for all things pond related.

Rick
Reviewed Sat, Sep 15 2012 9:56 am by
Image 5.0 stars out of 5
Aquasurge Pump 4000

We installed our pondless waterfall and Aquasurge 4000 pump EIGHT YEARS AGO here in Davidson NC. Still going strong and it runs 24/7. Definitely the best possible pump for the money and worth the investment over anything else!

Reviewed Sat, Jul 19 2014 10:17 am by
Aquasurge pump models 2000, 3000, 4000, 5000. Submersible waterfall and filter pump made for use in skimmer style filter systems.
