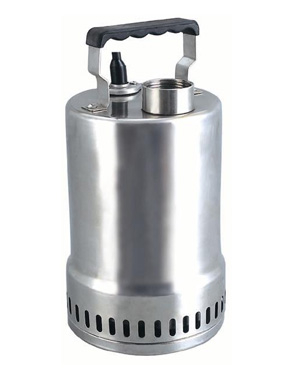

QDXBS Stainless Steel De-Watering Pumps

QDXBS Stainless Steel De-Watering Pumps | De-Watering/Clean-out

QDXBS Stainless Steel De-Watering Pumps

Write a Review

Starts at: $193.69

Brand: F&Q Pumps

SKU:QDX180BS

MPN: 27177

Corrosion resistant Stainless Steel submersible dewatering pumps, specially designed for dewatering construction sites, mines; subway, tunnels and civil engineering; utilities; decorative fountains, waterfalls, fish ponds, residential and wastewater discharge.

Features:

  • Stainless steel
  • Designed for dewatering
  • Thermal protector/auto reset
  • Dual mechanical seals
  • Stainless steel impeller
  • Outlet on top of pump
  • 1 year warranty

Specifications:

Model     HP  5'      10'    15'   20'   25'   Max
Head
Dimensions
(L x W x H)
Watts/VoltsDischargeCord
QDX180BS.2515601320108090036028'6"x6"x12"345/1151.25"20'
QDX250BS.33210018001440102060028'6"x6"x12"405/1151.25"20'

Technical Data:

  • DISCHARGE - 1.25" NPT. Vertical
  • SOLIDS HANDLING 1/8"
  • LIQUID TEMPERATURE 104 Degrees F. Contiuous, 140 Degrees F. Intermittent
  • MOTOR HOUSING 304 Stainless Steel
  • VOLUTE 304 Stainless Steel
  • SEAL PLATE 304 Stainless Steel
  • IMPELLER ABS
  • SHAFT Corrosion resistance stainless steel, threaded design.
  • BEARING (UPPER & LOWER) Ball bearing construction to carry all radil and thrust loads
  • HARDWARE 300 Series Stainless Steel
  • SQUARE RINGS Buna-N
  • POWER CORD 20ft quick disconnect cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW
  • DUAL MECHANICAL SEALS:
    Stainless steel metal parts, BUNA-N elastomers
    Upper Seal: Carbon vs Ceramic
    Lower Seal: Silicon Carbide vs Silicon Carbide
  • MOTOR (SINGLE PHASE)
    3450 RPM, 60Hz, 115 Volts, 2 Pole
    Air Filled, Class B
    Permanent Split Capacitor
  • SIZE 6" X 6" X 12"
