Rocking Piston Aeration Systems for Large Lakes

Write a Review

Starts at: $3,614.21

Brand: EasyPro

SKU:DCS64AD

These double compressor systems are designed for large ponds and lakes where high volumes of air are needed. Both compressors mount into the SC28 large cabinet (page 39) allowing up to twelve air lines from a single location.

Since the amount of tubing needed can vary widely in larger projects, these systems are designed with everything you need for a complete system less the tubing. Order as needed per project from page 36. All systems on this page are setup for 1 / 2 " Quick Sink tubing, other outlet sizes available.

New Quick Sink self-weighted diffuser bases for 2018.

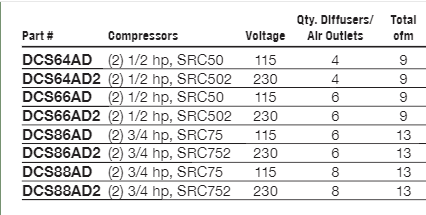

Choose from 1/2 or 3/4 hp compressors, see chart below for number of EPMD2 diffusers per system.

Cabinets come complete with compressors, valve assemblies, pressure gauge, pressure relief valves, high volume cooling fans and electrical box.

The cabinet (SC28N) for the DSC systems has been updated for 2020.

Dual cooling fans will now be included in the cabinets used in these systems. This will increase the air flow and cooling capabilities of these systems.

Additionally the stamped louvers on the side have been replaced with larger shrouds. This feature increases air flow and also deflects the noise of the compressor making systems quieter.

The fans are now the same as those in the SC18 and SC22 cabinets to streamline production and simplify any service calls that may be required in the future to replace a fan in any of these systems.

Rocking Piston DCS systems will include barb fitttings for on-site installation to connect either 3/8" or 1/2" tubing at the cabinet. Rotary Vane DCS systems will continue to be set up for connecting to 1/2" tubing at the cabinet.
