Rotary Vane Aeration - PA50 Sentinel Deluxe Systems - 1/4 HP Gast FREE SHIPPING!
Starts at: $1,580.93
Rotary Vane Deluxe Systems - Aerate up to 2 Acres
- 1/2 acre at 5-8' deep
- 1 acre at 8' -12' deep
- 2 acres at 12'-16' deep
1 Year Warranty on Compressor
5 Year Warranty on Tubing and Cabinet
- 18' maximum operating depth
- Dual voltage motors ship 115v unless specified 230v

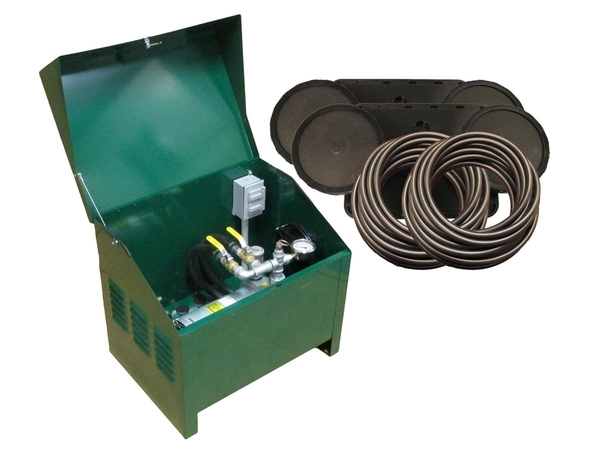

- Each package includes our deluxe locking cabinet complete with air compressor already installed, a cooling fan already installed and a electrical box/outlet already mounted and ready for your incoming power line
- Every compressor has a valved outlet assembly, a pressure relief valve and a pressure gauge installed, simply set cabinet in desired location, install your choice of air diffusers and connect the tubing
Rotary vane pumps do not operate as deep as the diaphragm and piston pumps — maximum operating depth is 18'.
The ¼ HP model pumps 4.5 CFM of air compared to 1.5 CFM with the ¼ HP piston compressor.
Aerates up to: 1/2 acre 5' - 8' deep, 1 acre 8' - 12' deep or 2 acres 12' - 18' deep.
This larger volume of air will increase circulation and oxygen levels for faster cleaning of the pond's bottom.
The ¼ HP rotary vane kit is recommended for ponds from one to two acres, but it is often used in ponds less than 1 acre if high fish population, exceptionally poor water conditions or heavy nutrient buildup exists.
- 1/4 hp Gast rotary vane compressor ww/ 1 year warranty
- 22" ground cabinet
- Two valve manifold with pressure relief and pressure gauge
- Choice of 200' of 1/2" Quick Sink Tubing or no tubing
- Easy to install Quick Sink self-weighted diffuser bases or no diffusers for custom system
- Approx 2.2 cfm air flow per diffuser
View the PDF for complete operating instructions.
