Tsurumi PL & PN Solids Handling Pumps Free Shipping on Pumps!
Starts at: $373.98
Shipping: Free
Brand: Aquascape
MPN: 3169
Need accessories for this item?
View AccessoriesProduct Accessories
The PL and PN Series pumps are known for durability, performance and value. The semi-vortex impeller design enables the pump to efficiently and effectively handle solids,resulting in less maintenance and trouble free performance. The built-in thermal overload protects the pump from damage if ever run in low water conditions.Ideal for use in Aquascape and other skimmer and fall filter systems, as well as Pondless Waterfall Vaults.
Wondering which pump is right for you? Use the Pump Selection Guide to decide.
- Ideal for use in skimmer filters and Pondless Waterfall applications
- Semi-vortex solids handling impeller reduces clogging and decreases maintenance
- Energy efficient, continuous duty motor operates at lower temperatures which extends pump life
- Constructed of stainless steel and composite resin for strength and corrosion resistance
2OM and 2PU models feature 304 Stainless Steel housing, oil-free motor, Fiberglass Reinforced Plastic impeller, volute, and top cover. It will pass a 0.4” solid and the semi-vortex design is ideal for string algae and organic matter. The 2OM features a fiberglass reinforced plastic semi-vortex impeller for capability and durability as well as dual inside mechanical seals with Silicone Carbide faces to provide the longest life. An oil lifter provides lubrication of the seal faces.
We also have the maintenance kits for the Tsurumi pumps so you can change/add oil to the pump (not needed in the first few years). It will have simple instructions. The pump should be stored in water to assure that the seals do not dry out, but should be started while still submerged in the water for a few seconds during the winter months so the barrier between the seals and shaft do not fuse together. Both Kits come with a replacement oil plug.
Click Accessories to find all maintenance products for these pumps.

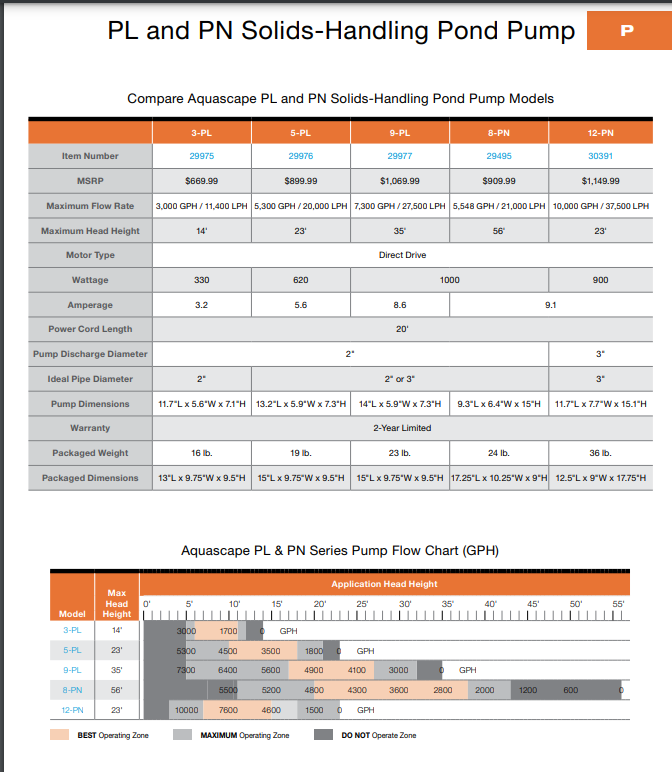

3PL 3000 GPH
|
5PL 5000 GPH
|
9PL 6800 GPH
|
3PN (50PN2.25S) 3180 GPH
|
4PN (50PN2.4S) 4350 GPH
|
8PN (50PN2.75S) 5500 GPH
|
12PN 10000 GPH
|
2OM 2430 GPH
|
2PU (50PU2.15S) 2880 GPH
|
|
Hydraulically engineered for the lower total dynamic head ranges typically found on water feature applications, helping increase the lifespan of the pump by reducing vibration and premature component wear.
Ease of Installation. Horizontal design provides perfect fit in our filters. Same discharge height as the AquascapePRO pump series allows pumps to be interchanged without plumbing modification. (Tsurumi 9PL is 3" wider than the Aquascape Pro 7500 and if necessary to fit, approximately 3/4" can be shaved off the plastic intake - 14 15/16" W x 6 11/16" H x 9 5/8" W)
* Low horizontal profile helps ensure the motor is fully submerged for proper cooling.
Large 1.5" intake handles bigger solids and reduces maintenances over the current Tsurumi PN and AquascapePRO pumps.
Electrical Efficiency These energy efficient pumps are designed for continuous duty applications and will provide years of trouble-free operation.
Same discharge height as the AquascapePRO series allows pumps to be interchanged without plumbing modification
Tsurumi 20M Features
- OM Series Submersible Waterfeature Pump (up to 23' Head)
- Ultra-lightweight design, great for pond/waterfall applications
- Highly-Efficient 1/5-HP Oil-Free Electric Motor
- Continuous duty rated, copper wound air-filled design
- Built-In Thermal Protection
- Provides added protection to keep your pump running
- Stainless Steel Motor Casing
- Corrosion-resistant design for extended pump life
- Semi-Vortex, Fiberglass Reinforced Plastic (FRP) Impeller
- Passes small solids without clogging
- Double Inside Mechanical Seal w/ Silicon Carbide Vs Ceramic Faces
- Provides the longest operational life of any seals available
- Ball Bearings Rated for a B-10 life of up to 60,000 hours
- Permanently lubricated, sealed designed for great heat dispersion
- 20- Foot Power Cord & Fits In Most Skimmer Boxes
- 2430 GPH @ 5'
- 2010 GPH @ 10'
- 1500 GPH @ 15'
- 960 GPH @ 20'
- 2-Year Warranty
Specifications Motor
2PU (50PU2.15S) Features
- PU Series Submersible Waterfeature Pump
- Ultra-lightweight design, great for pond/waterfall applications
- Highly-Efficient 1/5-HP Oil-Free Electric Motor
- Continuous duty rated, copper wound air-filled design
- Built-In Thermal Protection
- Provides added protection to keep your pump running
- Stainless Steel Motor Casing
- Corrosion-resistant design for extended pump life
- Semi-Vortex, Fiberglass Reinforced Plastic (FRP) Impeller
- Passes small solids without clogging
- Double Inside Mechanical Seal w/ Silicon Carbide Vs Ceramic Faces
- Provides the longest operational life of any seals available
- Ball Bearings Rated for a B-10 life of up to 60,000 hours
- Permanently lubricated, sealed designed for great heat dispersion
- 20-Foot Power Cord & Fits In Most Skimmer Boxes
- 2800 GPH @ 5'
- 2010 GPH @ 10'
- 1200 GPH @ 15'
- Max Head 17'
- 2-Year Warranty
Specifications Motor
3PN (50PN2.25S) Features
- PN Series submersible water feature pump
- Ultra-lightweight design, great for pond/waterfall applications
- Highly-Efficient 1/3-HP Oil-Free Electric Motor
- Continuous duty rated, copper wound air-filled design
- Built-In Thermal Protection
- Provides added protection to keep your pump running
- Stainless Steel Motor Casing
- Corrosion-resistant design for extended pump life
- Semi-Vortex, Fiberglass Reinforced Plastic (FRP) Impeller
- Passes small solids without clogging
- Double Inside Mechanical Seal w/ Silicon Carbide Vs Ceramic Faces
- Provides the longest operational life of any seals available
- Ball Bearings Rated for a B-10 life of up to 60,000 hours
- Permanently lubricated, sealed designed for great heat dispersion
- 20-Foot Power Cord & Fits In Most Skimmer Boxes
- 3180 GPH @ 10'
- 2610 GPH @ 15'
- 1800 GPH @ 20'
- Max Head 22'
- 2-Year Warranty
Specifications Motor
4PN (50PN2.4S) Features
- PN Series Submersible Waterfeature Pump
- Ultra-lightweight design, great for pond/waterfall applications
- Highly-Efficient 1/2-HP Oil-Free Electric Motor
- Continuous duty rated, copper wound air-filled design
- Built-In Thermal Protection
- Provides added protection to keep your pump running
- Stainless Steel Motor Casing
- Corrosion-resistant design for extended pump life
- Semi-Vortex, Fiberglass Reinforced Plastic (FRP) Impeller
- Passes small solids without clogging
- Double Inside Mechanical Seal w/ Silicon Carbide Vs Ceramic Faces
- Provides the longest operational life of any seals available
- Ball Bearings Rated for a B-10 life of up to 60,000 hours
- Permanently lubricated, sealed designed for great heat dispersion
- 20-Foot Power Cord & Fits In Most Skimmer Boxes
- 4350 GPH @ 10'
- 3750 GPH @ 15'
- 3120 GPH @ 20'
- Max Head 29'
- 2-Year Warranty
Specifications Motor
8PN (50PN2.75S) Features
- PN Series Submersible Waterfeature Pump (High Head)
- Ultra-lightweight design, great for pond/waterfall applications
- Highly-Efficient 1-HP Oil-Free Electric Motor
- Continuous duty rated, copper wound air-filled design
- Built-In Thermal Protection
- Provides added protection to keep your pump running
- Stainless Steel Motor Casing
- Corrosion-resistant design for extended pump life
- Semi-Vortex, Fiberglass Reinforced Plastic (FRP) Impeller
- Passes small solids without clogging
- Double Inside Mechanical Seal w/ Silicon Carbide Vs Ceramic Faces
- Provides the longest operational life of any seals available
- Ball Bearings Rated for a B-10 life of up to 60,000 hours
- Permanently lubricated, sealed designed for great heat dispersion
- 20-Foot Power Cord & Fits In Most Skimmer Boxes
- 5220 GPH @ 15'
- 4800 GPH @ 20'
- 3500 GPH @ 30'
- Max Head 38'
- 2-Year Warranty
Specifications Motor
12 PN Features
- PN Series Submersible Waterfeature Pump (High Volume)
- Ultra-lightweight design, great for pond/waterfall applications
- Highly-Efficient 1-HP Oil-Free Electric Motor
- Continuous duty rated, copper wound air-filled design
- Built-In Thermal Protection
- Provides added protection to keep your pump running
- Stainless Steel Motor Casing
- Corrosion-resistant design for extended pump life
- Semi-Vortex, Fiberglass Reinforced Plastic (FRP) Impeller
- Passes small solids without clogging
- Double Inside Mechanical Seal w/ Silicon Carbide Vs Ceramic Faces
- Provides the longest operational life of any seals available
- Ball Bearings Rated for a B-10 life of up to 60,000 hours
- Permanently lubricated, sealed designed for great heat dispersion
- 20-Foot Power Cord & Fits In Most Skimmer Boxes
- 8000 GPH @ 10'
- 5000 GPH @ 15'
- Max Head 18'
- 2-Year Warranty
Specifications Motor
LB480 Features
Slimline Submersible Utility Pump w/ 2" Discharge
- Allows pump to fit into 8" pipes
- 2/3-HP 6.1-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 3744 GPH
- Top Discharge Provides Maximum Motor Cooling Efficiency
- Provides max motor cooling efficiency & extended dry run time
- Urethane Semi-Vortex Impeller & Wear Plates
- Designed for maximum durability & pump performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 32' Power Cord
- Great for outdoor applications
- 2-Year Limited Warranty
Specifications Motor
LB-800 Features
- Slimline Submersible Utility Pump w/ 2" Discharge
- Allows pump to fit into 8" pipes
- 1-HP 9.6-Amp Motor (22.1-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 4920 GPH
- Top Discharge Provides Maximum Motor Cooling Efficiency
- Provides max motor cooling efficiency & extended dry run time
- Urethane Semi-Vortex Impeller & Wear Plates
- Designed for maximum durability & pump performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 50' Power Cord
- Great for outdoor applications
- 2-Year Limited Warranty
Specifications Motor
HS2.4S Features
- Submersible Trash Pump
- Easily handles sand, debris, and solids up to 1/4"
- 1/2-HP 5.4-Amp Motor (12.5-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 3180 GPH
- Grey Iron Casting Case
- Lightweight & durable design resists corrosion
- Built-In Shaft Mounted Agitator
- Suspends solids to provide minimal wear and clogging
- Urethane Semi-Vortex Impeller
- Designed for maximum durability and performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 45° Cast Iron Angled Discharge Connector
- Provides a more stable installation for discharge hoses
- 20' Heavy-Duty Cord
- 2-Year Limited Warranty
Specifications Motor
Question:
We have a Tsurumi 9-PL Pump for our waterfall. We want to shut the waterfall down for 3 months when we go away. Since we will not be home we cannot turn the pump on for 3 months. Is there any other way to store the pump so that the barrier between the seal and the shaft do not fuse together?
Aquascape Tech Answer:
That shouldn't be an issue. Per Tsurumi, we recommend rinses the pump off, clearing it of any debris, drying off & storing in a frost-free location to overwinter.
Question:
What comes in the Tsurumi 3PL Seal Kit - 025-000-41? Does it include the mechanical seal? I also have a question about removing the seal and if the oil should have gotten into the motor housing
Aquascape Tech Answer:
Part number 025-000-41 is listed as part number 24 . You can see in the parts that are included by looking at the picture in the attachment at Parts List - Tsurumi 3PL
Per the Tech and Products department , the mechanical seal should be repaired/replaced by a pump repair shop. This would be something a homeowner should not replace on their own. Seal press tools are required to install the seals evenly and at the right pressure. Having this repair done by someone that is familiar with pumps should not get any oil in an area it is not to be .
View the PDF for complete operating instructions.
